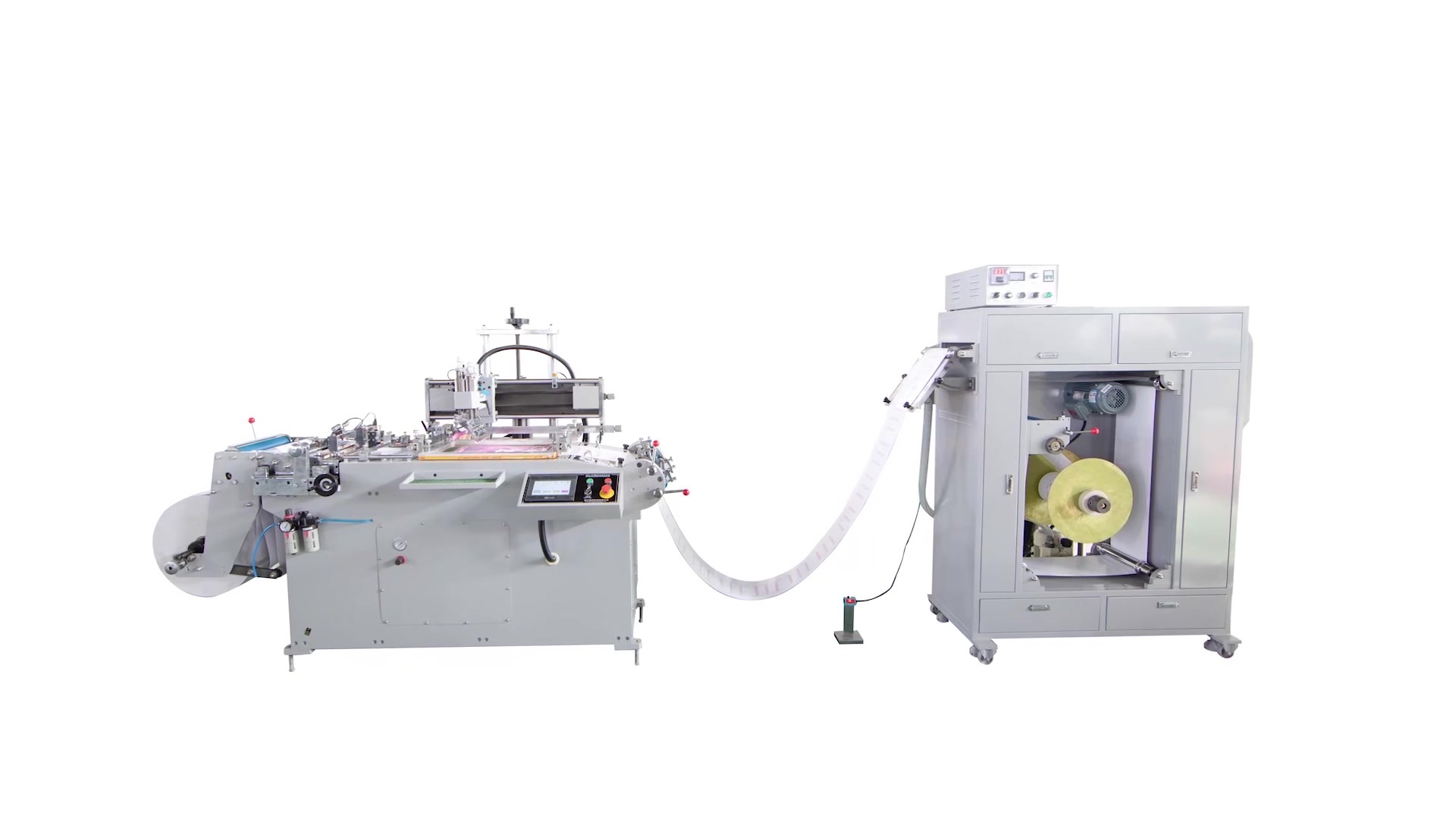

卷筒丝网印刷机

产品视频

相关产品

在线留言

产品描述

该机用于 PVC、OPP、绦纶、防伪商标、不干胶纸等卷筒材料作连续性印刷、烘干、收卷。此机性能特点是送料采用最新电脑数控伺服电机输送，主要传动部件采用了伺服控制，印刷位置前后左右均由光电跟踪控制。使机器具有套印精度高、送料稳定、自动计数报警、调校方便、结构紧凑等特点。

产品描述

WQ-320

技术参数

机型	WQ-320
印刷速度	10-50次/分(rpm)
最大放卷直径	450mm
最大走料宽度	320mm
最大印刷宽度	300mm
最大印刷长度	320mm
定位精度	±0.15mm
主机功率	1200w
烘箱功率	4100w
主机外形尺寸	24009501500mm
烘箱外形尺寸	17506001800mm
整机重量	约1100kgs
