WQM-320G/420

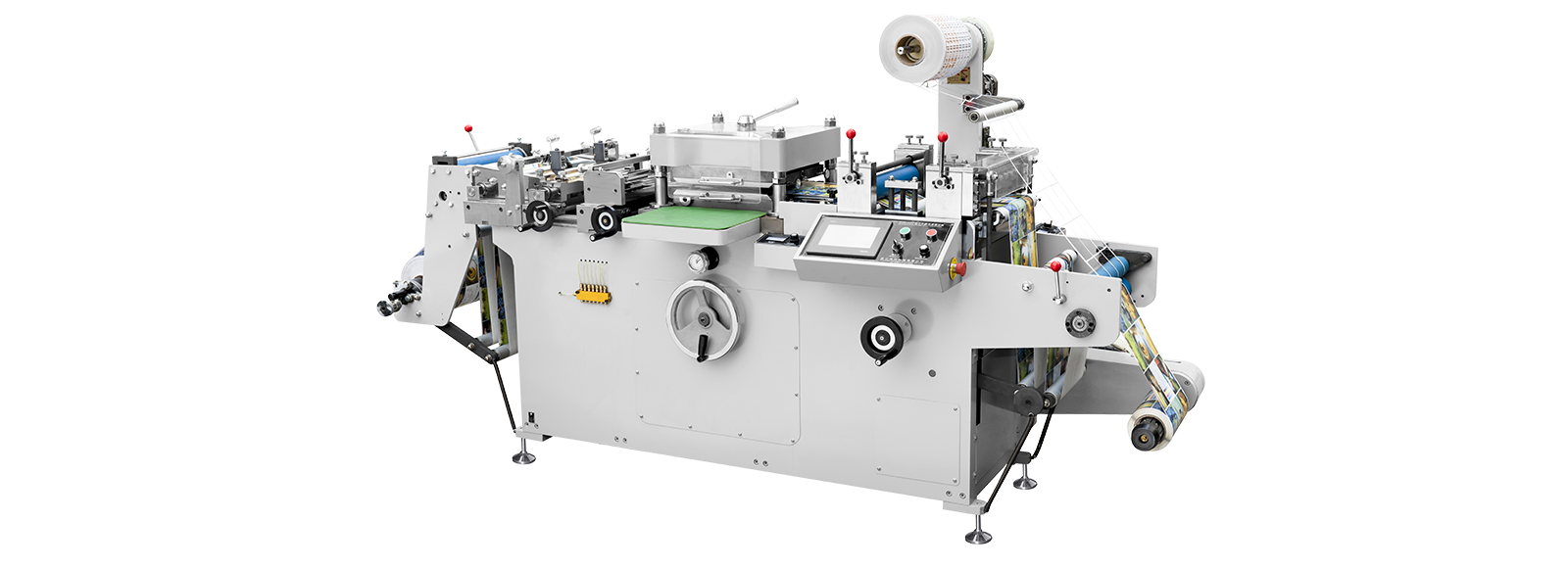

自动不干胶商标模切机

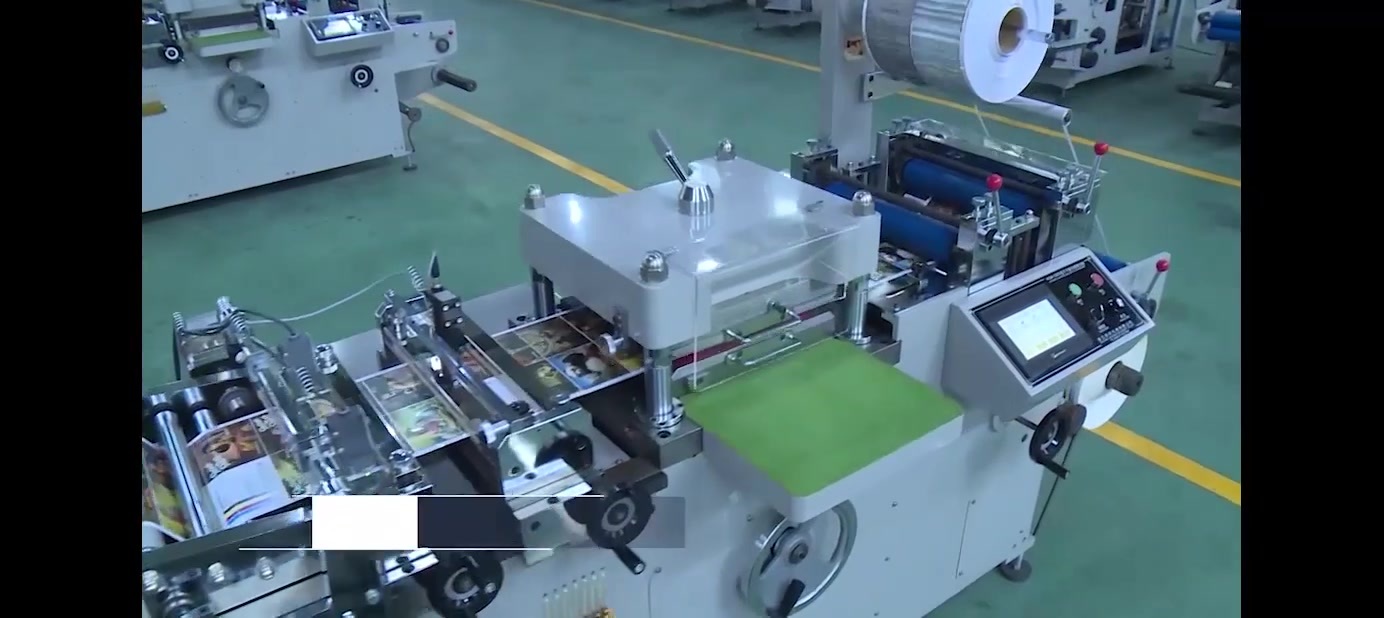

产品视频

相关产品

在线留言

产品描述

该机以平压平高精度模切，拖料及切片由电脑控制，印刷标两边及纵向由三只光电眼精确跟踪定位，模切、收废、切片或自动贴标机用的卷筒一次完成。非常适合纸张不干胶商标、绦纶薄膜商标及镭射防伪商标的模切。该机是柔版印刷机、连续丝印机、凹版印刷机及防伪商标模压机最佳配套设备,是各商标印刷厂最理想高效率的机型。

产品描述

覆膜装置，可在模切机不同位置上加装覆膜装置

伺服烫金装置

打孔装置，打电脑孔或中孔

注:以上均为选配装置

WQM-320G/420

技术参数

机型	WQM-320G	WQM-420
模切速度	20-280次/分(rpm)	20-280次1分(rpm)
最大放卷直径	500mm	500mm
最大走料宽度	320mm	420mm
最大模切宽度	300mm	400mm
最大模切长度	300mm	400mm
定位精度	±0.15mm	±0.15mm
总功率	3.5kw	4.5kw
电源电压	220v±10%	380v
整机重量	约1700kgs	约2300kgs
外形尺寸	26009901400mm	295013501400mm
